LT6502b complete!

Well, I had a chance to get my head sorted and I finally finished the “b” version of the LT6502

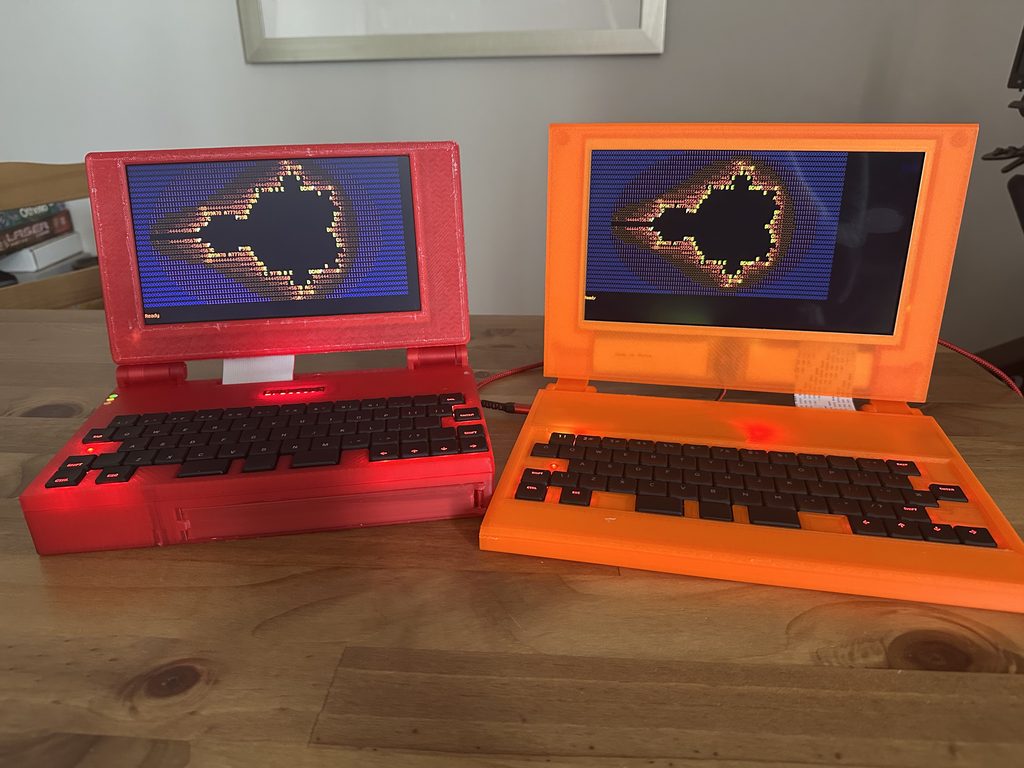

Here you can see it next to the first version, I changed my mind about the case and went for translucent orange, it’s way more vivid in real life. I really do like the translucent material, it’s really different 🙂

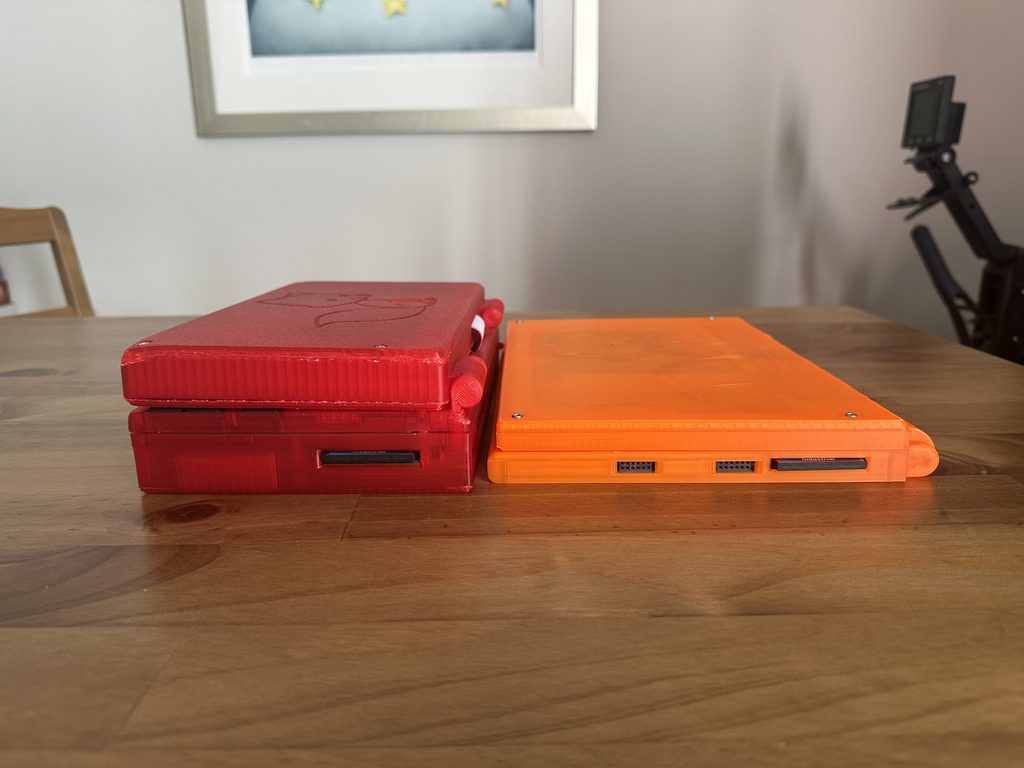

The first big thing that’s different, it’s half the thickness of the old one;

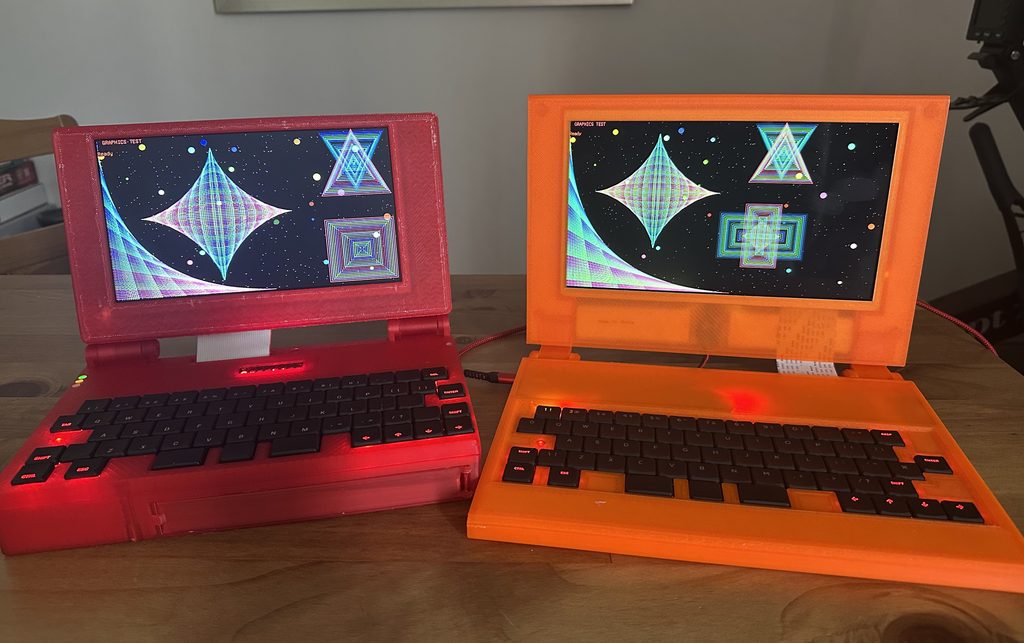

It also has a larger, higher resolution screen. The screen is 1024×600 and is 10.1″, the previous one was 800×480 and 9″.
It has a similar battery capacity, so should last about the same amount of time.
It’s a little faster, 10MHz instead of 8MHz.
It has a SID emulator on board and a WiFi Modem.
It doesn’t have an expansion slot though. The aim was to make it more “sleek”.

The screen also has a better contrast ratio being IPS rather than regular LCD, and the higher resolution really does show.

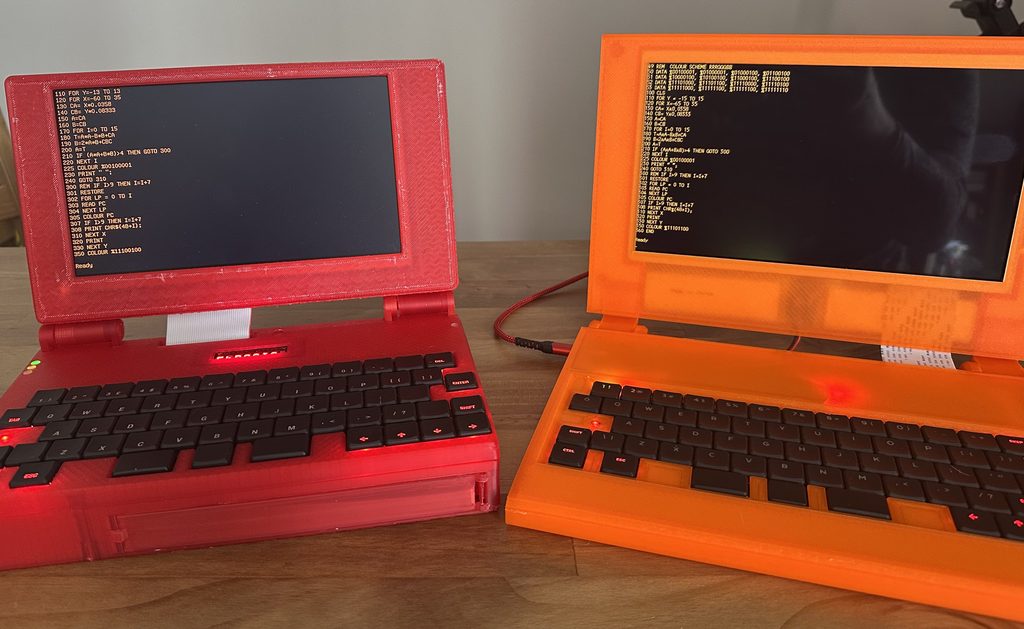

Here is a good example of that, and also the extra rows of text you can fit on the screen!

You can find the code/PCB Files/etc all on Codeberg here – https://codeberg.org/TechPaula/LT6502b

There are, of course, somethings I’d change

• The holes and support for the heat inserts need making bigger and stronger, they’re VERY weak.
• CAPSLOCK led under the capslock key
• Find a better WiFi Modem, this is too slow and a bit flakey for real use.
• better speaker, it works, but it’s a bit “anemic”
• Faster, start with speed in mind (i.e. figure out how to copy ROM to RAM and switch out ROM)
• Better battery solution, I’m thinking something 18650 and on the back as part of the “hinge”
• USB PD support that doesn’t need preprogramming of the USB-PD chip to limit it at 5V, would be nice to have a buck/boost convertor to take anything USB-PD can throw at it and make it 5V
• Better sound chip, the SID is ok, but it’s a bit limited by modern standards.
• I really want to be able to read a FAT16 file system on the CFCard rather than my own custom one.
